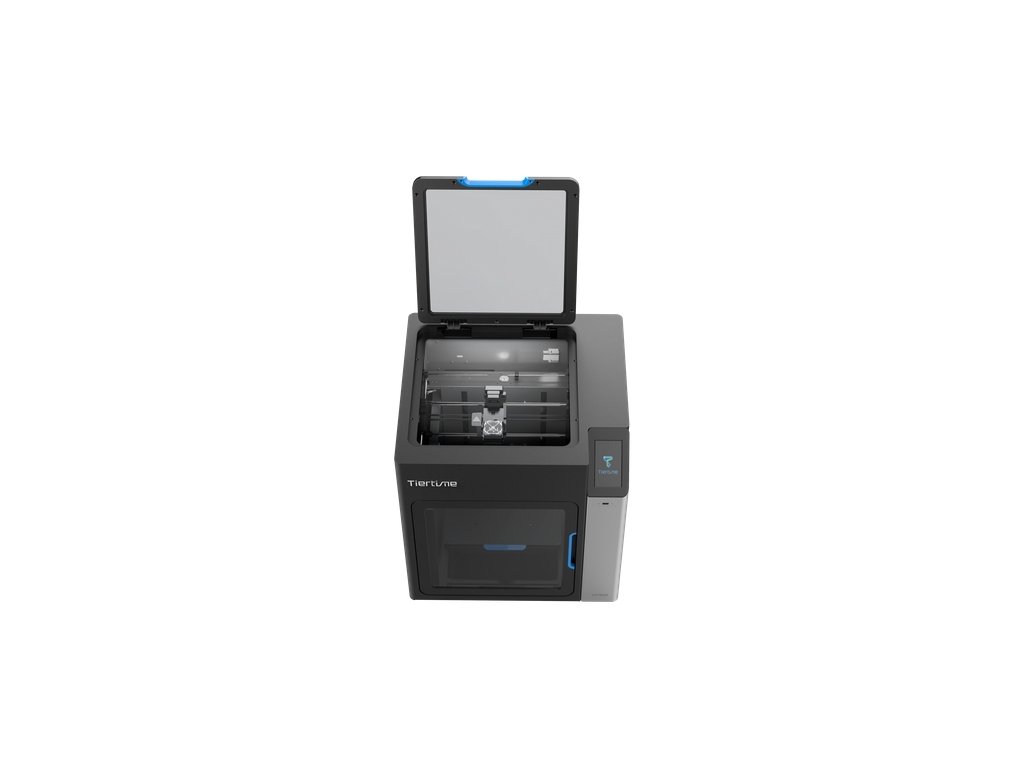

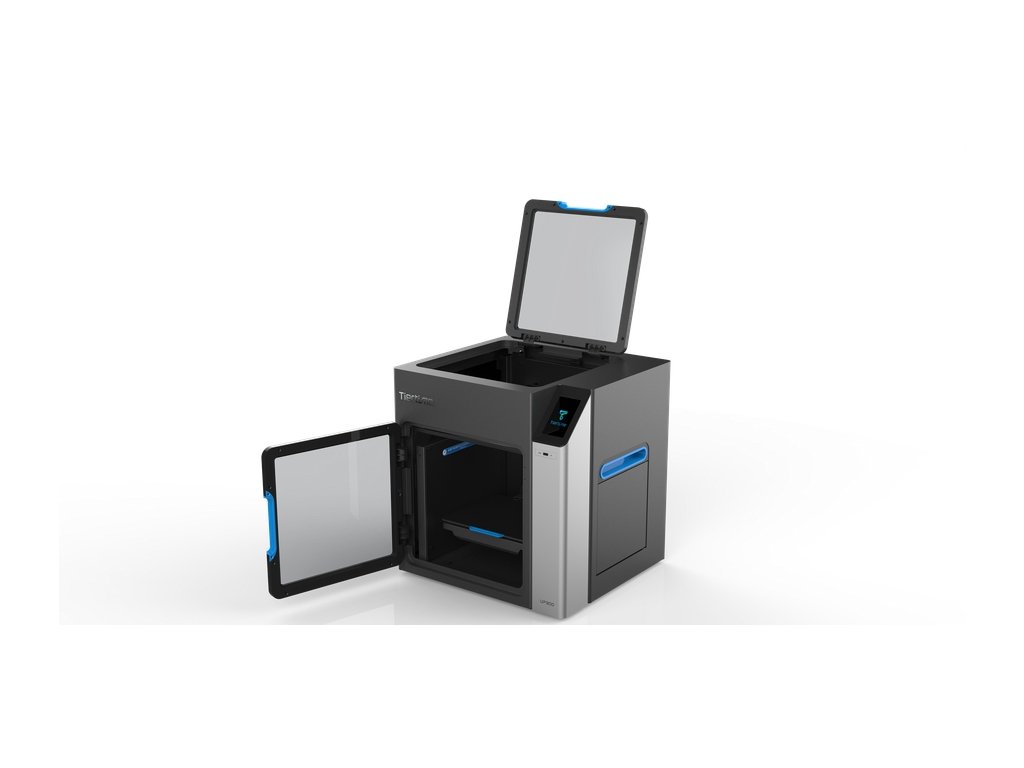

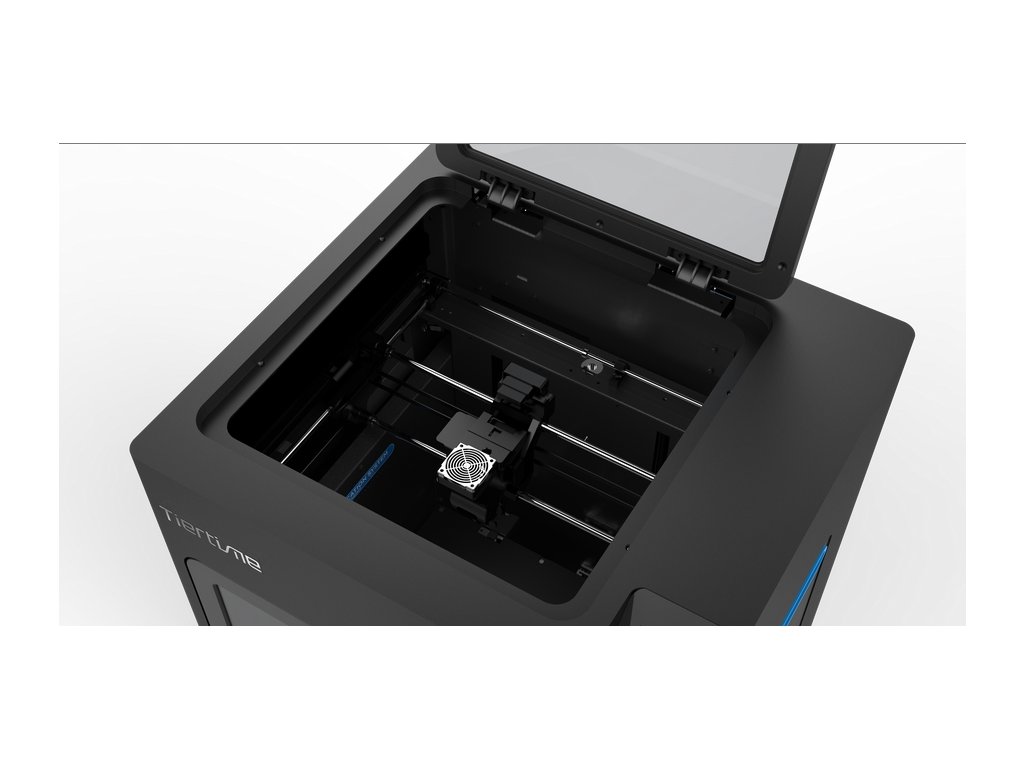

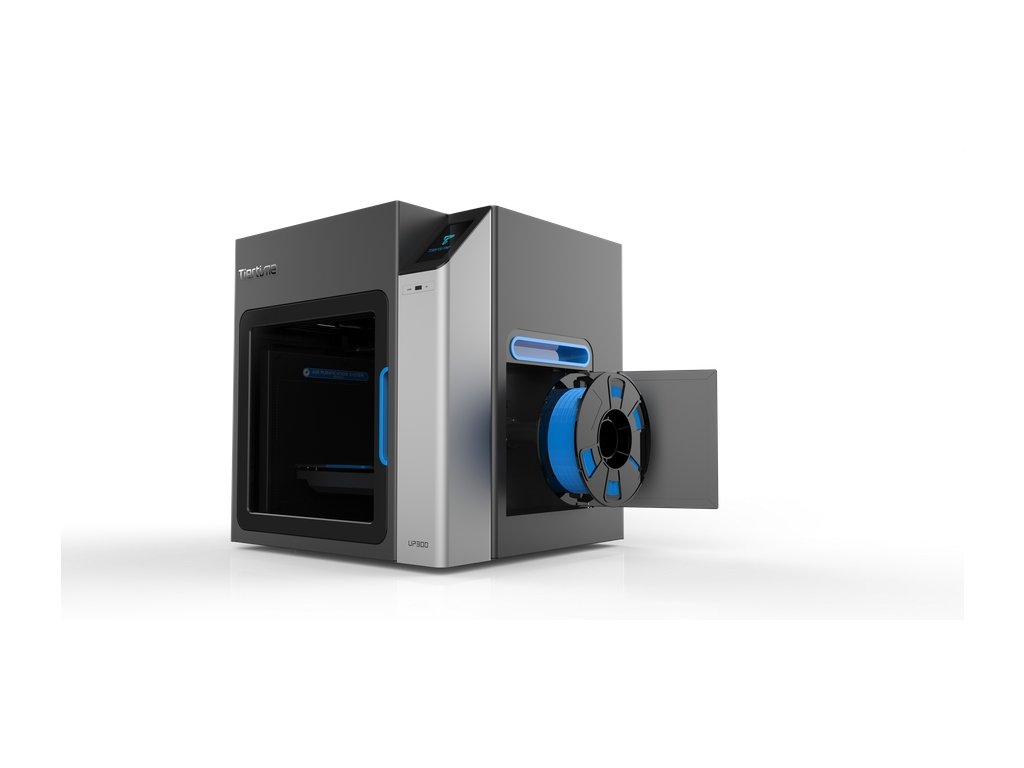

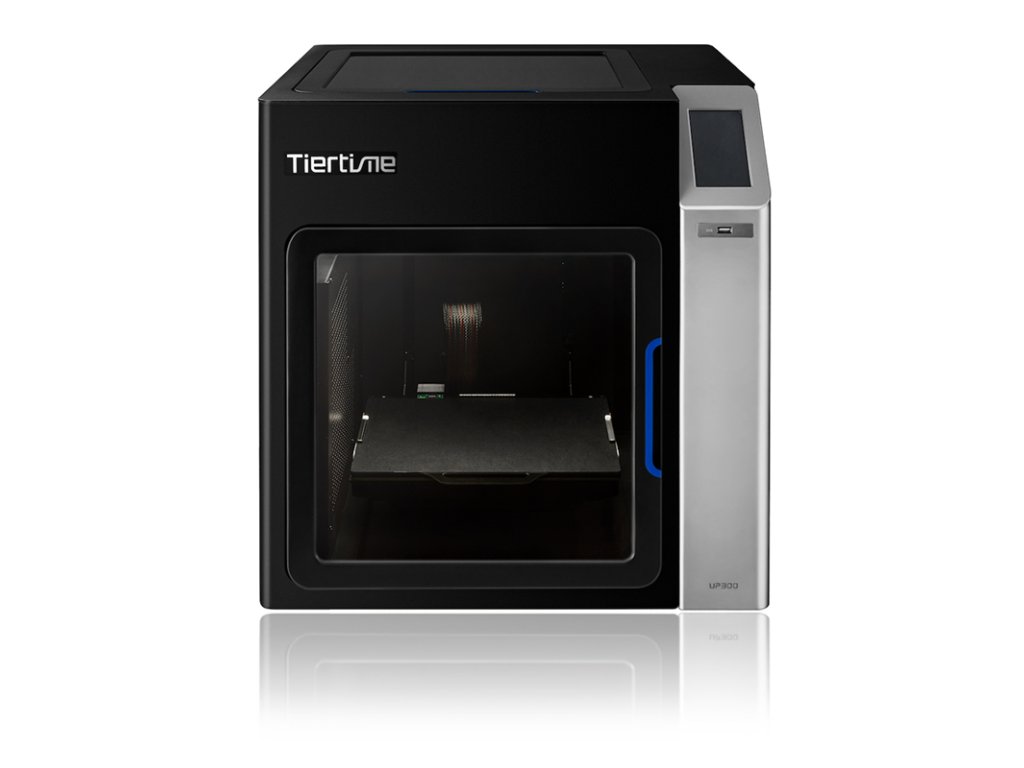

Tiertime UP300

Sale
Brand: Tiertime
€2.291,10 –49 %
2019UP300
€2.291,10 –49 % €1.149,70 €1.391,10 incl. VAT
In Stock (2 pcs)
Delivery to:
13/12/2023

205 × 255 × 225 mm

Interchangeable extruders for ABS, PLA and TPU.

DEMO available for testing in the Showroom

Detailed information

Product detailed description

The Tiertime UP300 meets the needs of users who require large print space and consistent performance across a variety of materials. It combines the new innovations and improved reliable features that Tiertime is known for: Three printheads specific to ABS, PLA and TPU filaments, double-sided replacement pads, dual air filtration and compatibility with Tiertime Print Queue.



Versatility and accuracy

UP300

Large print space.

Consistent performance across different materials.



Material specific extruders

One is for ABS and other high temperature fibers, one for low temperature fibers such as PLA, and the other for TPU, flexible polyurethane.



Interchangeable double-sided bases for printing

The new double-sided board design makes it easier to remove print jobs due to its rigidity.

The glass surface provides a consistent, level base. It provides a smooth underside of the model, desirable for rafting-free printing.





Waste collection bin

A removable waste collection compartment is located under the construction platform. This makes cleaning the bottom of the printer cover easy.



Tiertime Press Queue

Multiple users on the network can become the print queue administrator. It is then possible to change the order and priority of individual tasks.





 HEPA filter + Carbon filter



 The Tiertime UP300 3D printer features a dual air filtration system specially designed for its large print chamber. The air is filtered by a HEPA filter and a separate activated carbon filter, which significantly reduces toxic emissions. The HEPA filter promises 99.95% efficient filtration of ultrafine particles.



Technical specifications:

3d Printer


Printing technology  MEM  (Melted Extrusion Modelling)
Extruder Single
Nozzle diameter 0.2mm, 0.4mm, 0.6mm, a 0.5mm (TPU)
Maximum extruder temperature 299℃
Maximum print speed 200 mm/sec
XYZ accuracy 7, 7, 1.5 microns
Connectivity USB Cable, Wi-Fi, LAN and USB Stick
Display 4.3″ Color LCD Touchscreen
Print volume 205 × 255 × 225 mm (XYZ)
Accuracy of the printed model ±0.1mm/100mm
Layer resolution 0.05/0.1/0.15/0.2/0.25/0.3/0.35/0.4mm
Maximum platform temperature 100℃
Calibration and Leveling Automatic
Base material Perforated Glass, Glass, Heated
Interruption to replace the filament Yes
Filament end detection Yes
Filament UP Fila ABS,  ABS+,  PLA,  TPU and other
Filament diameter 1.75mm
Coil compatibility 500 – 1000g
Compatible with other filaments Yes

Software


Software UP Studio Version 2.5 or above
Supported OS Windows 7 (SP1) or higher (32 bit and 64 bit)
Mac OS 10.10
HW minimum OpenGL 2.0
At least 4GB of RAM
Supported formats .up3, .ups, .tsk, .stl, .obj, .3mf, .ply, .off, .3ds
Preview support structure Yes
Editing support structure Yes
Cloud print settings Yes

Dimensions

Dimensions 500 x 523 x 460 mm
Weight 30kg
Package dimensions 610 x 565 x 600 mm (24″ x 22.2″ x 26.4″)
Package weight 42.5kg

Power supply

Input 110-240VAC,50-60Hz,220W

Additional parameters

Category: 3D Printers FDM
Warranty: 2 years
Weight: 42.5 kg
Brand: Tiertime
