Raise3D Pro2

Brand: Raise3D

€3.810,90 €4.611,20 incl. VAT

In Stock You have in 7 days

Delivery to: 21/06/2023
SYNE Filtr Box ?

305 × 305 × 300 mm Double Extruder

Pro2 Plus Large Format 3D Printer

Building Space (W × D × H)
Printing with one extruder:
305 × 305 × 300 mm
Printing with two extruders:
280 × 305 × 300 mm

Detailed information

Show all related products

Description
Videos (1)

Product detailed description

Pro2 3D Printer with double extruder

Industrial use

Electronically driven dual extruder with retractable nozzles

It prints complex mechanical components, supports various multi-material filaments and increases printing speed.

High repeatability (<0.005 mm, 5 micron)
Lightning speed (<1 second switching time)
Lifting distance 1.5 mm, compatible with flexible filaments
High reliability (tested> 100,000 times)

Think bigger projects

Up to

305×305×300 mm

24/7 Reliability
Several security levels against failure
Industrial components

High definition

Unique motion system for excellent quality and resolution of parts

Interchangeable nozzles:
0.2 mm nozzle for accurate X / Y details

Exact location:
0.78125 micron X / Y axis accuracy

Unrivaled layer resolution:
0.01 mm layer thickness

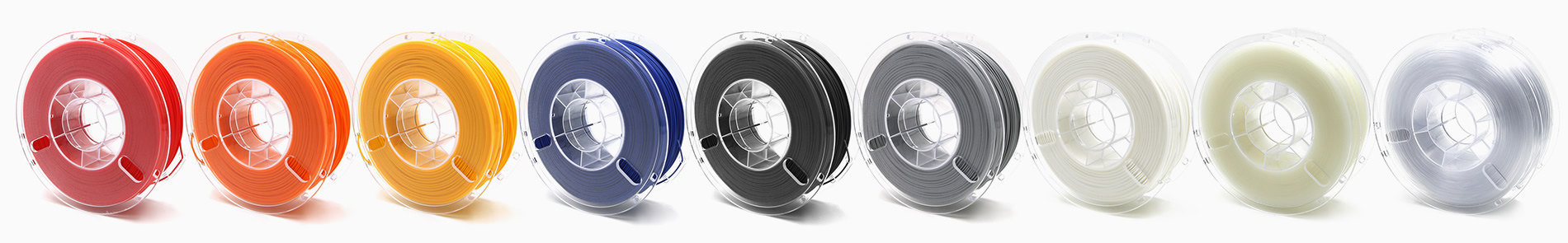

Ability to print a large selection of filaments up to 300 ℃

PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill

Intuitive user interface

Visual interface / Quick view / Visualization of the printing process / Full control of settings

7-inch touch screen
Integrated setting control
Assistant directly on the display
Visual model selection

Print loss protection

“I actually knocked off the power accidentally. I was currently doing a 96 hours print with only 2 hours left.

As I raised my head to scream in terror, I turned the machine back on and it asked me to continue print. THIS WAS A LIFESAVER！”

– Shon Robinson

New generation Motion Controller

Best-in-class reliability / Precise voltage control / Smooth movement / Excellent thermal performance

400 MHz ARM Cortex-M7 32bit RISC FPU
Industrial components
Separate engine controller
256 microstep driver

Remote user interface

Access / Monitoring / Control

Work efficiently with ideaMaker wirelessly to your Pro2 Series 3D printer

HEPA Air Filtration

Environmentally friendly

Designed for silent removal of nanoparticles

Printing platform

Excellent deformation prevention / Even heat distribution / Longer service life / Easy model removal

Material for the aerospace industry
High temperature silicone heating bed
Magnetically mounted aluminum platform
Improved lock system 4 + 9 points

Pro2 Technical specification

Download

GENERAL

Build Volume (W×D×H)

Single Extrusion Print:
12×12×11.8 in / 305×305×300 mm
Dual Extrusion Print:
11×12×11.8 in / 280×305×300 mm

Machine Size (W×D×H)

24.4×23.2×29.9 in / 620×590×760 mm

Print Technology

FFF

Print Head System

Dual-head with electronic lifting system

Filament Diameter

1.75 mm

XYZ Step Size

0.78125, 0.78125, 0.078125 micron

Print Head Travel Speed

30–150 mm/s

Build Plate

Heated aluminum build plate with magnetic holding

Max Build Plate Temperature

110 ºC

Heated Bed Material

Silicone

Build Plate Leveling

Pre-calibrated leveling

Supported Materials

PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill

Nozzle Diameter

0.4 mm (Default), 0.2/ 0.6/ 0.8/ 1.0 mm (Available)

Max Nozzle Temperature

300 ºC

Connectivity

Wi-Fi, LAN, USB port, Live camera

Noise Emission (Acoustic)

＜50 dB(A) when building

Operating Ambient Temperature

15-30 ºC, 10-90 % RH non-condensing

Storage Temperature

-25 ℃ to +55 ℃, 10-90 % RH non-condensing

Technical Certifications

CB, CE, FCC, RoHS

Net Weight

50.2 kg

Gross Weight (Carton Only)

62.7 kg

Gross Weight (Carton with Pallet)

70.5 kg

ELECTRICAL

Power Supply Input

100-240 V AC, 50/60 Hz 230 V @3.3 A

Power Supply Output

24 V DC, 600 W

SOFTWARE

Slicing Software

ideaMaker

Supported File Types

STL/ OBJ/ 3MF/OLTP

Supported OS

WINDOWS/ macOS/ LINUX

Machine Code Type

GCODE

Printer Controller

User Interface

7-inch Touch Screen

Network

Wi-Fi, Ethernet

Resume Print after Power Outage

Firmware recording, no need for battery installation. Protection from any condition

Screen Resolution

1024×600

Motion Controller

ARM Cortex M7.400MHZ FPU

Logic Controller

Freescale i.MX6, Quad core 1Ghz ARM processor

Memory

1 GB

Onboard Flash

8 GB

OS

Embedded Linux

Ports

USB 2.0×2, Ethernet×1

Additional parameters

Category:	3D Printers FDM
Warranty:	1 year
Weight:	80 kg
Brand:	Raise3D
